Adjust a Wing Defender
In Stock
Product Description
- Standalone CDM – features Adjust-A-Wings 3K CDM Lamp
- Adjust-A-Wings Defender Reflector (Medium – size)
- Remote or connected ballast (parts included for both)
- High PPF – 1200μmol
- Long PAR maintenance – extended 12,000hr lamp life
- Super-spreader included (no hot spots)
- 3 year ballast warranty, 1 year lamp warranty included
Product Description
Overview
Broaden your spectrum the Adjust-A-Wings way – grab a 630W HELLION CDM/CMH Lighting System.
What is Adjust a Wing Defender?
It’s ideal as a standalone or supplemental CDM for all stages of growth, with a 3K colour spectrum.
Lamps have an extended 12,000hr lamp life, with long PAR maintenance. To achieve this, your lamp has an XOS borosilicate single skin jacket.
There’s no mixing and matching manufacturers – the ballast, lamp & reflector are all Adjust-A-Wings components – they’re designed to work together.
For best results, use them in a chequerboard formation with HELLION HPS Lamps – this really broadens your spectrum!
It’s taken years of research and trials to build this CDM system – results are astounding.
High PAR Output
Lamps have a high PPF of 1200μmol at 630W.

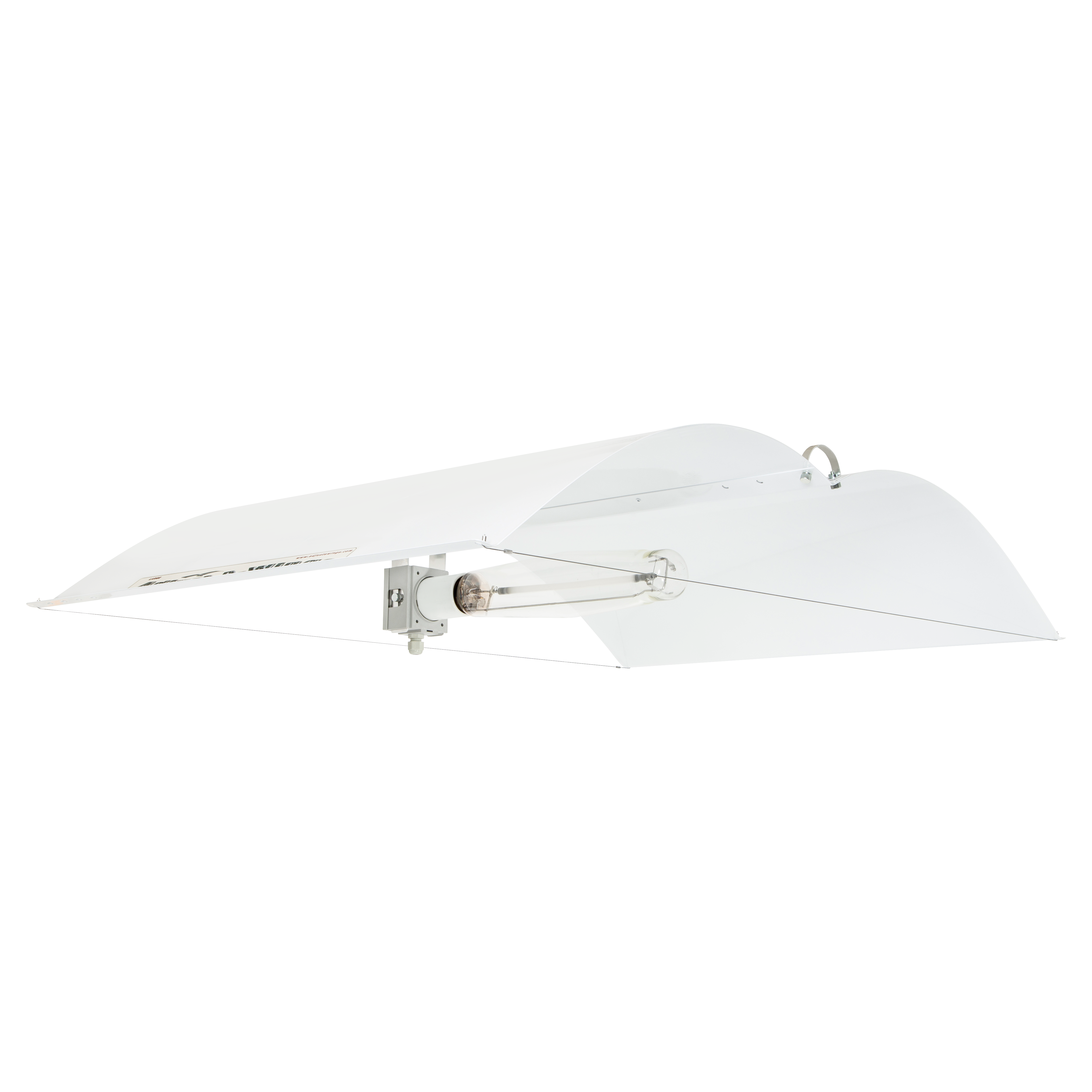

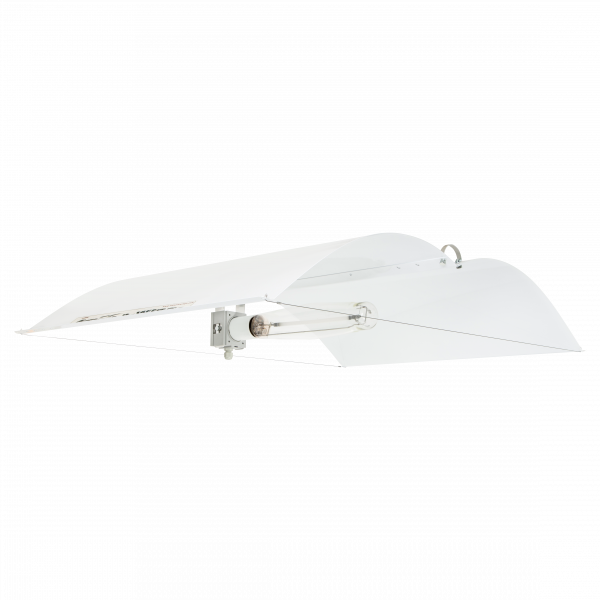

Adjust-A-Wings Defender Reflector!
It’s 92% reflective, titanium white-coated to make it heat resistant.
Double Ended Lamps
You get a really even burn across your lamps and colour rendering is accurate. It’s also easy to position your lamps precisely.
Tweak Your Light & Heat Intensity
There are 5 x wing positions and 5 x lamp heights. Remember, you can dim your ballast, too.
No More Bright, Hot Spots
You can get much closer to plants without burning or stretching them, thanks to the included Super Spreader.
Flexible Layout!
Hang your lamp, ballast & reflector together. Or to save space, keep your ballast outside your grow room.
Layout – Deep Spectral Mixing:
For best results, go for a chequerboard layout, using a mix of CDM & HELLION HPS Lamps – this really broadens your spectrum!
With the included spectrum, lights can get close to your canopy for deep penetration. This, along with a mixed spectrum really unlocks the ‘Emerson Effect’, driving yield size & quality.
Why Use A Super Spreader?
To stop bright, hot spots building under your lamp, a Super Spreader is included.
With one attached, growth is uniform, so you get a nice even canopy and bigger overall yield. You can bring your light much closer to plants without burning or stretching. If you haven’t got much headroom, they’re a must.
Normal Reflector
Adjust-A-Wings + Super Spreader
Mimic The Seasons With Your Reflector
To trigger the right growth at the right time, use your reflector to mimic spring, summer & autumn.
Spring
When: veg growth, Wings: narrow
Lampholder: low, Distance: 75-90cm
For uniform growth, create warm, even light patterns with a moderate intensity.
Summer
When: flowering, Wings: wide
Lampholder: high, Distance: 40-60cm
Trigger flowering deep into the foliage with high intensity light and summer temperatures.
Autumn
When: maturing Wings: mid
Lampholder: mid Distance: 60-75cm
Enhance and balance essential oils as plants mature with autumn settings.
Ballast Tech Specs
Operating Parameters
| 630W HELLION CMH Digital Ballast DE | |
|---|---|
| Current at 630W | 120V/ 5.8A 240V/ 2.9A 277V/ 2.5A |
| Output wattage | 315W / 450W / 550W / 630W / |
| Efficiency | > 94% |
| Ignition voltage | < 5.0KV |
| Ambient operating temperature | -20°C to 40°C |
| Max case temperature | 90°C |
| Standard | IEC 61347 |
| EMC | EN55015 |
Input And Performance Parameters
| 630W HELLION CMH Digital Ballast DE | |
|---|---|
| Input voltage | 120V/ 240V/ 277V |
| Input frequency | 50/60Hz |
| THD | <5% |
| PF | > 0.97 |
| OCV | < 300V |
| Weight | 3.5kg |
| Dimensions | 292mm x 175mm x 74mm |
| EMC | EN55015 |
Protection
| 630W HELLION CMH Digital Ballast DE | |
|---|---|
| Short circuit | yes |
| Open circuit | yes |
| Ignition failure | yes |
| Overheated | yes |
| EOL | yes |
| Soft Start | yes |
| Hot re-strike | yes |
| EMC | EN55015 |
Lamp Tech Specs
Output Specifications
| 630W HELLION DE-CMH 3K Lamp | |
|---|---|
| Luminous Flux | 64,094 |
| Lumen / Watt | 102 |
| CRI | 87.4 Ra8 |
| PPF | 1202 μmol |
| Photon Efficiency | 1.91 μmol/J |
| Colour Temperature | 3100K |
| Hot re-strike | yes |
| EMC | EN55015 |
Physical Specifications
| 630W HELLION DE-CMH 3K Lamp | |
|---|---|
| Overall length | 390mm (15.35″) |
| Glass base to base | 270mm (10.63″) |
| Glass jacket | 320,, (12.6″) |
| Glass diameter | 30mm (1.18″) |
| Weight | 283g |
| Colour Temperature | 3100K |
| Hot re-strike | yes |
| EMC | EN55015 |
Intended Use
| 630W HELLION DE-CMH 3K Lamp | |
|---|---|
| Socket Type | SPPDS-E or equally rated double ended lamp socket |
| Socket pulse rating | 3.5kV |
| Fixture rating | Open |
| Burning position | Horizontal ±15° |
| Bulb designation | T40 |
| Base designation | K12x30s |
| Hot re-strike | yes |
| EMC | EN55015 |
